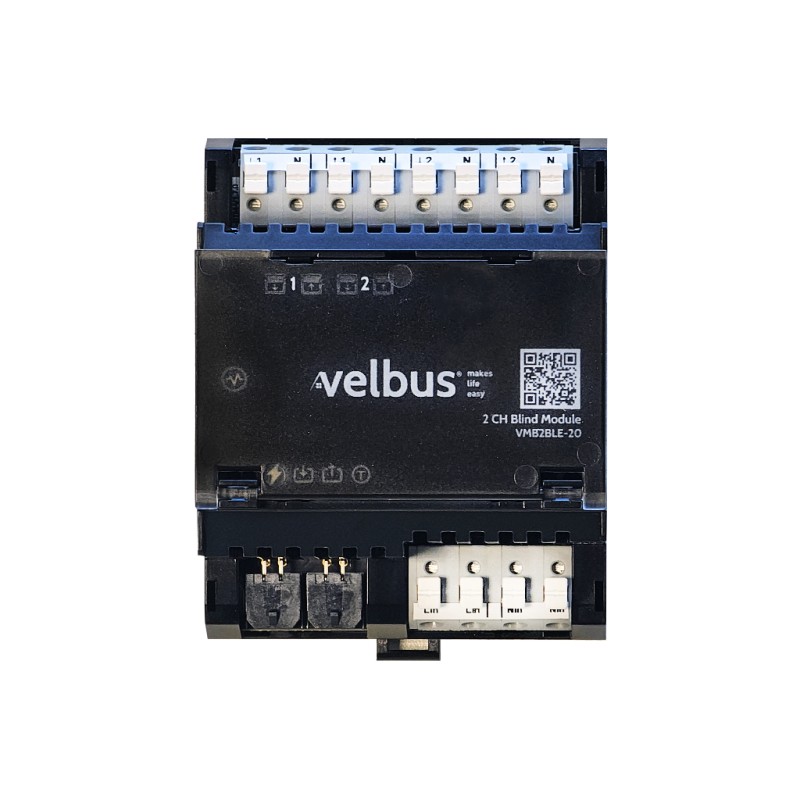

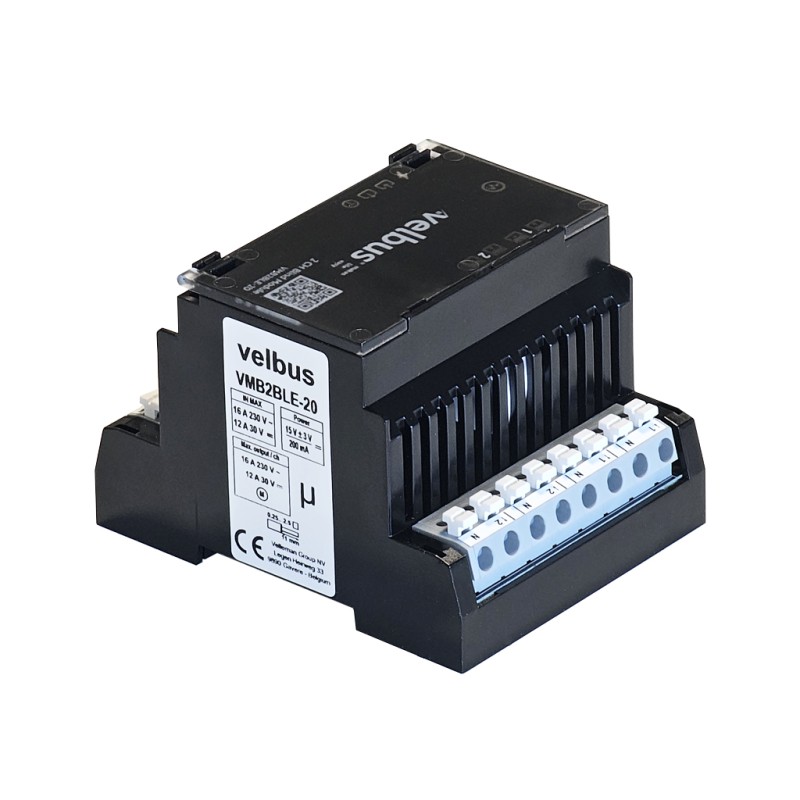

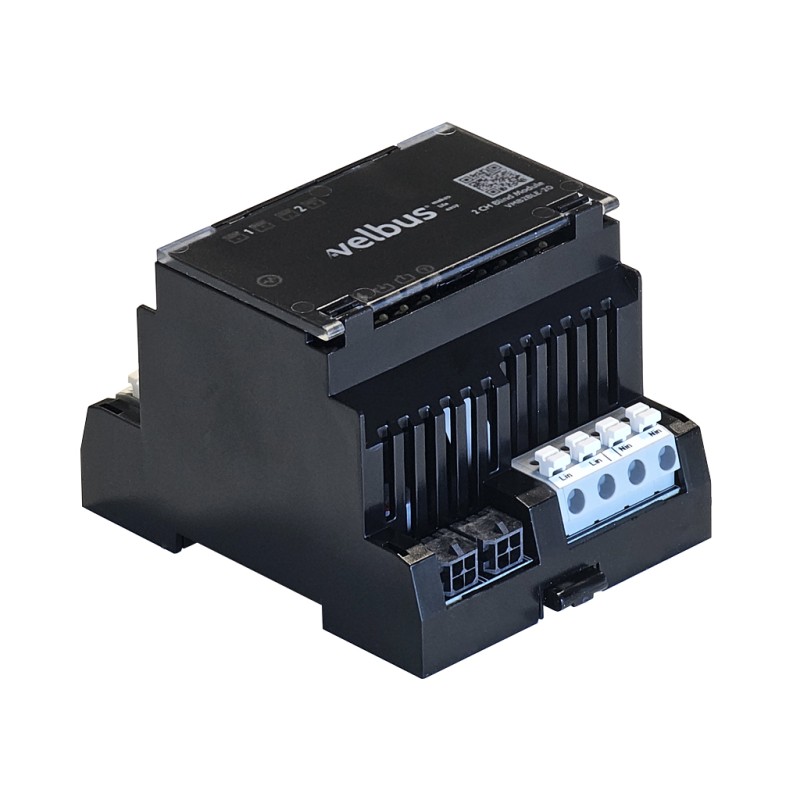

Velbus 2-channel blind control module

VMB2BLE-20

Velbus VMB2BLE-10 2-channel shutter or sunblind module. Let your sunblind or shutter adapt itself to your way of living. Combine this module with your lighting system to create the right atmospheres at any time.

More details

198,03 €

-2%

202,07 €

More info

Bring advanced blind and shutter automation to your home with the Velbus VMB2BLE-20, the new generation of the popular VMB2BLE module. This updated version combines the trusted functionality of the VMB2BLE-10 with enhanced performance thanks to a more powerful processor, four virtual channels, and built-in logic functions — making it ready for future smart home applications.

Easily control blinds, shutters, or curtains through Velbus control panels, smartphone apps, or automated schedules based on daylight conditions. Program actions according to sunrise and sunset, or use logical conditions to optimize comfort and energy efficiency.

The VMB2BLE-20 offers over one hundred operation modes (including up, down, set position, force, and inhibit), and provides real-time feedback to your Velbus system so you always know the exact status of your blinds. Built-in motor protection ensures safe and reliable operation by preventing conflicting commands.

Combine convenience, safety, and energy efficiency with this powerful and future-ready module — the perfect choice for any modern home or building automation setup.

  • can be used to control an electric roll-down shutter, sunblind...
  • manual control on the module
  • controllable through VELBUS (no direct input for push buttons)
  • programmable with PC
  • feedback towards the control modules
  • address is set electronically
  • 105 modes: up, down, up/down, set to position, force, inhibit, ...
  • LED indicators for:
    • UP and DOWN relay outputs
    • UP and DOWN operation modes
    • power voltage
    • data reception and forwarding through VELBUS

Specifications

  • Physical properties:
    • Number of channels: 2
    • Width DIN modules: 4
  • Electrical data:
    • Maximum contact voltage rating VAC: 230 V
    • Maximum contact voltage rating VDC: 24 V
    • Maximum current consumption: 200 mA
    • Maximum contact current rating VAC: 16 A
    • Maximum contact current rating VDC: 12 A
  • Technical data:
    • Mounting type: DIN-rail mounting
    • DIN rail: Yes
    • Protocol: Velbus CANbus (Molex)
    • Number of modes: 105
    • Time out: Programmable per channel (1s to 5m34 s or continuously on)
  • Operational properties:
    • Instruction manual languages: Dutch, English, French
    • Possible address: 250
    • Number push buttons: 2
  • Power supply:
    • Input voltage rating VDC range: 12-18 V
  • Included:
    • With LED indicators: Yes
  • Product basic info:
    • Colour unit: Black
    • Additional colour: Green
    • Depth unit: 58 mm
    • Height unit: 90 mm
    • Weight unit: 170 g
    • Width unit: 71 mm
    • Material: Flame-retardant PC (polycarbonate)

  • Only a qualified professional may carry out the installation in conformity with in force legislation and standards.

Bar code

  • Bar code (EAN-13):5410329757045
