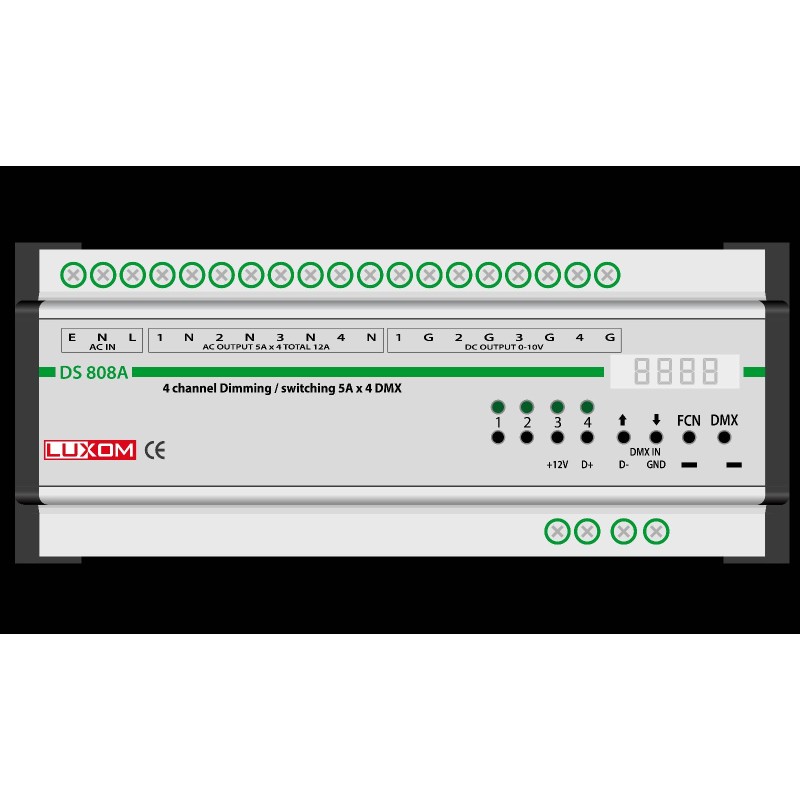

Luxom DS808A 4 Channel Light Dimmer Pack

Luxom DS808A: 4-channel dimmer pack

The DS808A is a versatile 4-channel dimmer pack designed for flexible lighting control in residential and commercial installations. It supports conventional dimmable lamps, non-dimmable lighting and 0–10 V DC fluorescent ballasts or compatible LED transformers.

The module offers both DMX-512 and EDX communication protocols, allowing it to operate with DMX controllers or EDX scene control panels. With six programmable lighting scenes, adjustable fade times and support for up to 99 zones, the DS808A provides flexible control over different lighting configurations.

Required module to use this module: DS20CD

Key features:

• 4 independently configurable output channels.
• Compatible with conventional dimmable lamps (leading-edge), non-dimmable lamps and 0–10 V DC dimmable fluorescent ballasts or LED transformers.
• Supports DMX-512 and EDX protocols.
• Six programmable lighting scenes with adjustable fade times.
• Supports up to 99 zones in EDX mode.
• Multi-zone functionality allows individual channels to be assigned to different zones.
• Scene overlap function for combining lighting scenes.
• Adjustable output delay for smooth switching.
• Individual channel output testing.
• Instant channel control via the module's front panel.

Technical specifications:

• Power supply: 100–240 V AC
• Power consumption: 7 W
• Output: 5 A per channel, 12 A maximum total
• Dimming control: Leading-edge (forward-phase) dimming and 0–10 V DC
• EDX port DC output: 200 mA
• Dimensions: 190 × 88 × 57 mm (W × H × D)
• Weight: 590 g

The DS808A combines versatile dimming capabilities with programmable scenes and flexible zone management, making it suitable for a wide range of architectural and environmental lighting applications.
