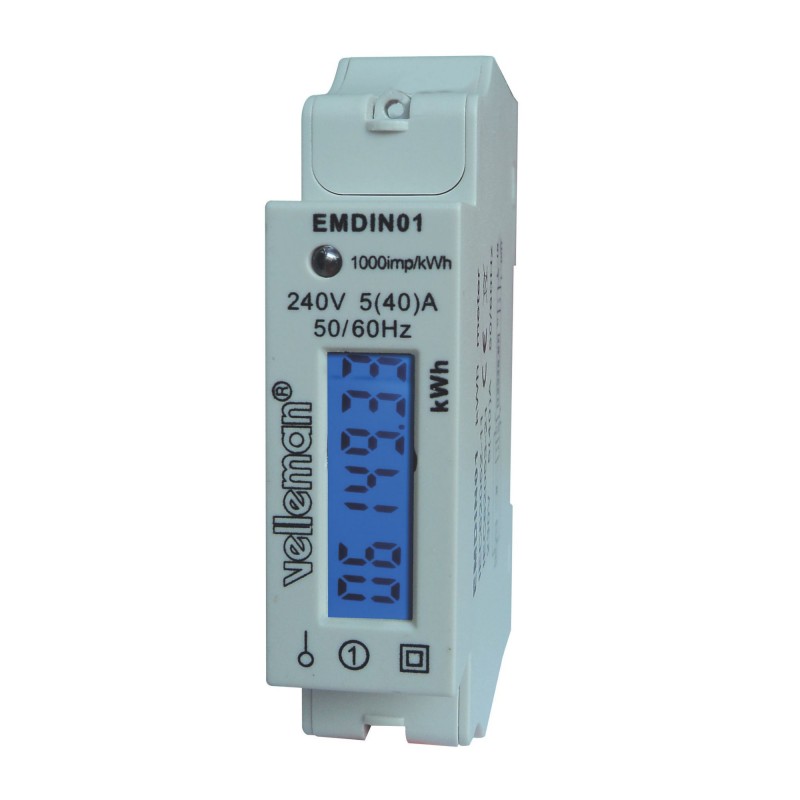

Velleman EMDIN01 1-phase kWh meter for DIN rail mounting - 1 module
EMDIN01
EMDIN01 This kWh meter measures the energy consumption of a 1-phase system such as a solar panel system, charging station or heat pump
More info
*2 pieces on stock, new stock available from end of August 2025*

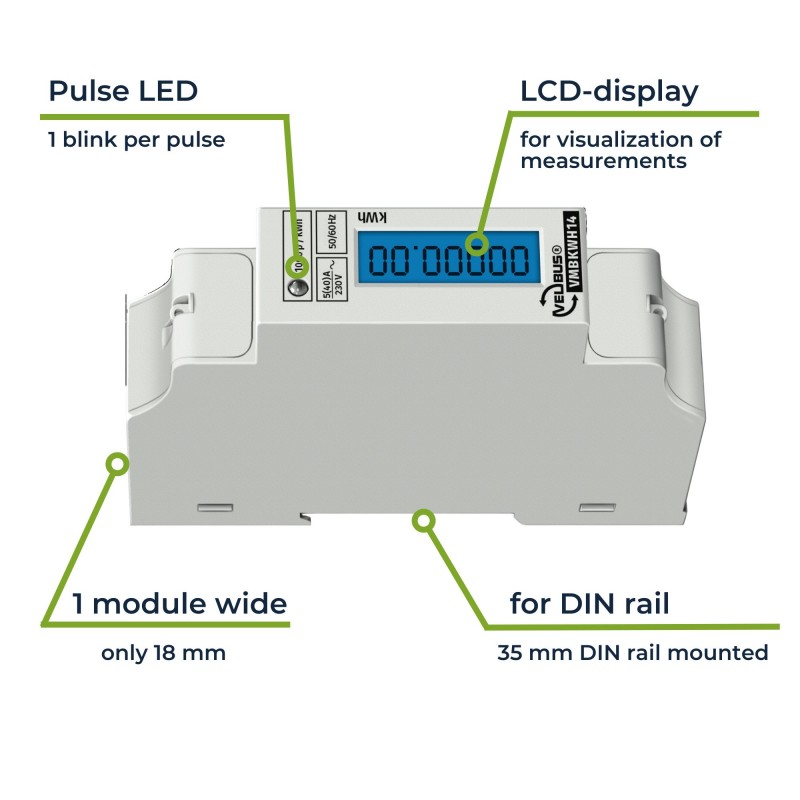

With energy prices so high, it is good to do as much as possible to keep costs as low as possible. You can do this by saving energy. This kWh meter measures the energy consumption of a 1-stage system such as a solar panel system, charging station or heat pump. You immediately see how many kWh this system consumed or produced on the illuminated LCD screen. A special system under the influence of current and applied voltage generates pulses proportional to the electricity consumed. The energy consumption is indicated by a flashing LED. The meter is intended for mounting on a DIN rail and takes up only one 118 mm module.
+ Efficient: The kWh meter gives insight into your energy consumption.
+ Energy-saving: With this electricity meter, you know exactly how much you actually pay in energy costs. This makes detecting energy guzzlers easy.
+ Easy reading: Easy to read thanks to the clear LCD display (5 + 2 digits).

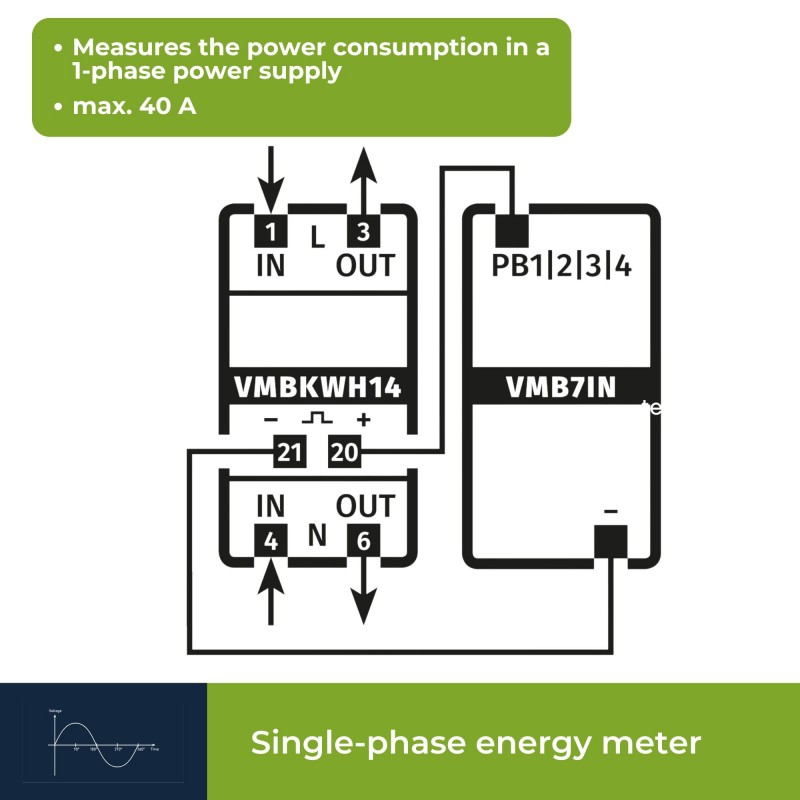

+ Possibility of connecting external readout devices.
+ Suitable for up to 40 A rated current.
- Which kWh meter you need depends on the number of wires that need to be connected for full metering. Your home may be connected to a 3 phase connection, but if the appliance itself is only connected to 1 phase, you will need a 1 phase kWh meter to measure the appliance.
+ Energy-saving: With this electricity meter, you know exactly how much you actually pay in energy costs. This makes detecting energy guzzlers easy.
+ Easy reading: Easy to read thanks to the clear LCD display (5 + 2 digits).
+ Possibility of connecting external readout devices.
+ Suitable for up to 40 A rated current.
- Which kWh meter you need depends on the number of wires that need to be connected for full metering. Your home may be connected to a 3 phase connection, but if the appliance itself is only connected to 1 phase, you will need a 1 phase kWh meter to measure the appliance.
| Product basic info | |
|---|---|
| Primary colours | Grey |
| Additional colours | Grey |
| Additional detailed colours | Metallic silver |

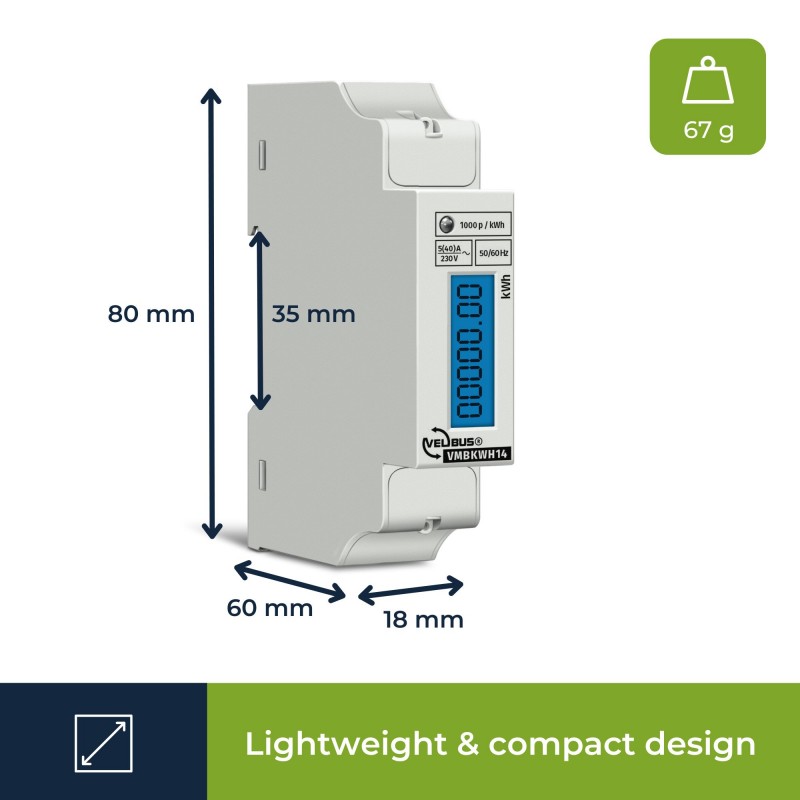

| Depth unit | 80 cm |
| Height unit | 60 mm |
| Width unit | 18 mm |
| Weight unit | 67 g |
| Material | ABS |
| Physical properties | |
|---|---|
| Display type | LCD |
| Number din modules | 1 |
| Width DIN modules | 1 |
| Electrical data | |
|---|---|
| Maximum indication | 999999.99 |
| Maximum current rating | 40 A |
| Pulse output current | 27 mA |
| Pulse width | 90 ms |
| Lamp type | Led |
| Pulse per kilowatthour | 1000 |
| Pulse output voltage | 12-27 V |
| Accuracy class | 1 |
| DIN rail energy meters minimum accuracy rating | 5 A |
| DIN rail energy meters nominal voltage | 240 V |
| LED indicator blinks per pulse | 1 |
| Technical data | |
|---|---|
| DIN rail | |
| PNP resistor | |
| Environmental data | |
|---|---|
| Operating temperature range | -25-55 °C |
| Maximum operating humidity | 75 % |
| Connections | |
|---|---|
| Wire size mm² | 2-16 mm² |
| Electrical connections | |
|---|---|
| Number of phases | 1 |
| Power supply | |
|---|---|
| Input frequency rating | 50/60 Hz |
| Power consumption | 2 W |
| Included | |
|---|---|
| LED indicator | |
- Bar code (EAN-13):5410329481063
