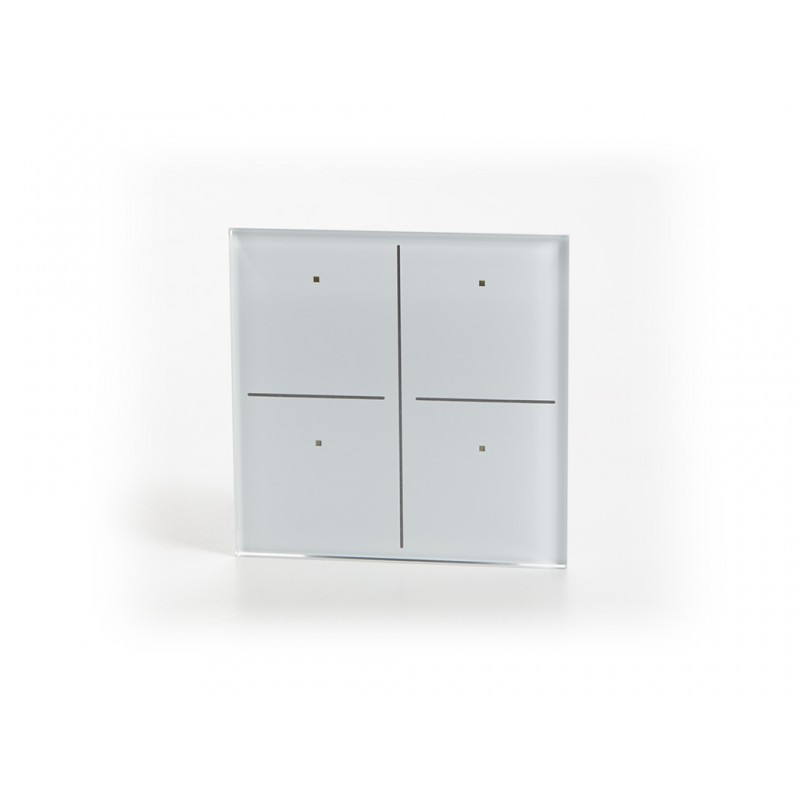

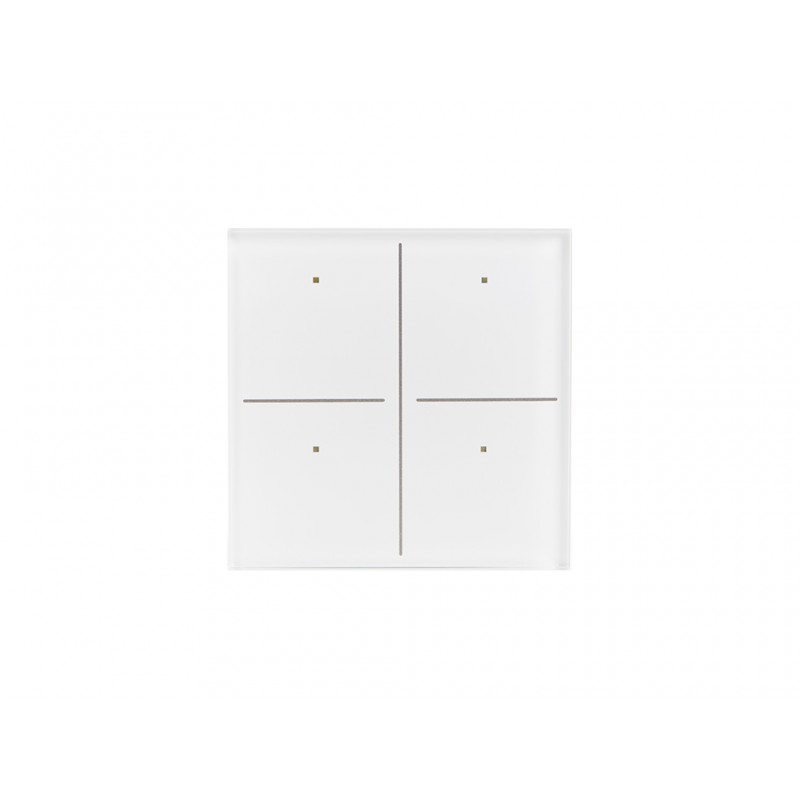

Velbus 4 touch button white glass
VMBGP4-W-20
Glass control module with 4 touch keys, white. The touch keys have white LED feedback, also serving as orientation light.
Audible click feedback during touch. Very extended timer functions.
More info
Intuitive Touch Control with LED Indicator(s)
Experience the future of home automation with the Velbus Glass Panel's capacitive touch interface. Effortlessly control lighting, blinds, and connected devices with a simple touch. Audible click feedback during your touch provides an immediate confirmation, while programmable white LED indicators with customizable animations add a visual cue for specific device statuses, adding a personal touch to your smart home environment.
Customizable Control & Response Times
Velbus Glass Panels intuitively detect long or short presses, allowing tailored interactions. Opt for quick adjustments with a short press or initiate comprehensive scene changes and light dimming with a long press. Fine-tune your experience with adjustable reaction times of 0, 1, 2, or 3 seconds for each button, adapting to your preferences for a seamless and responsive smart home experience.
Reliable and Durable
Built with quality and durability in mind, the Velbus Glass Panels are designed to withstand the demands of daily use, offering a stable and long-lasting smart home solution. Our 10 year warranty is a testimony that we stand behind the durability and reliability of our product, ensuring your smart home investment is safeguarded for a decade, providing uninterrupted and worry-free smart home control.
Energy Efficiency & Smart Thermostat
Optimize energy usage by incorporating the 'all lights off' action, enhancing efficiency when leaving your home. Each Velbus Glass Panel includes an onboard temperature sensor, enabling customized adjustments for heating and cooling in specific rooms. This smart thermostat feature ensures precise energy use, promoting a greener and more sustainable home.
Stylish and Elegant Design
Elevate your living space with the modern and minimalist design of Velbus Glass Panels. The sleek glass panel seamlessly integrates into any decor, adding sophistication to your home. Choose from a stylish black version (VMBGPx-B-20) or a sleek white version (VMBGPx-W-20) for timeless design that seamlessly integrates into any interior.
- white edition (also available in black)
- configurable by using the Velbus interface (VMBRSUSB) and the free VELBUSLINK: Configuration software for Velbus (free download) program
- adjustable button response time (0, 1, 2 or 3 seconds)
- detection of short or long button press
- configurable multi-channel operation on each push button, the next channel is selected at each press (up to 8 channels)
- dual channel push button configurable, a different channel is selected depending on the length of the push (short or long push)
- extensive day, week and year programs plus a built-in astronomical clock (sunrise and sunset timing) are included to operate push buttons automatically
- integrated temperature sensor to control the heating and air conditioning
- configurable LED feedback light for each button
- LED-indication for supply voltage, data and terminator (backside)
- uses one address per 8 buttons and one for the thermostat function (optional) (configurable by using VELBUSLINK)
- not suitable for installation on electrically conductive surfaces (eg. metal), or nearby sources of electromagnetic disturbances

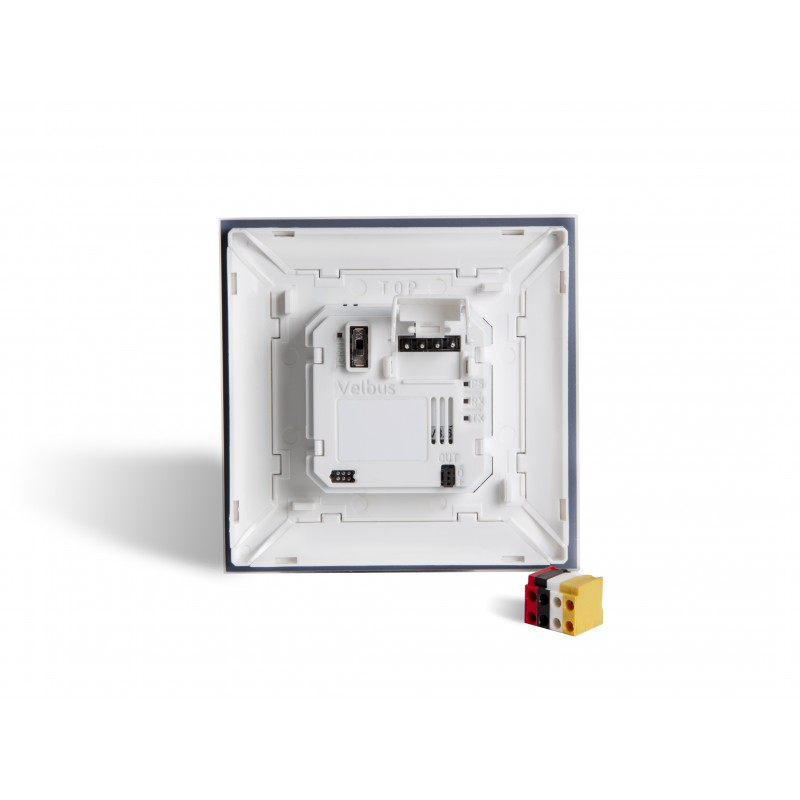

- WAGO KNX/EIB connector for a fast screwless and reliable connection (requires solid core EIB grade cables with 4x 0,8 mm diameter)

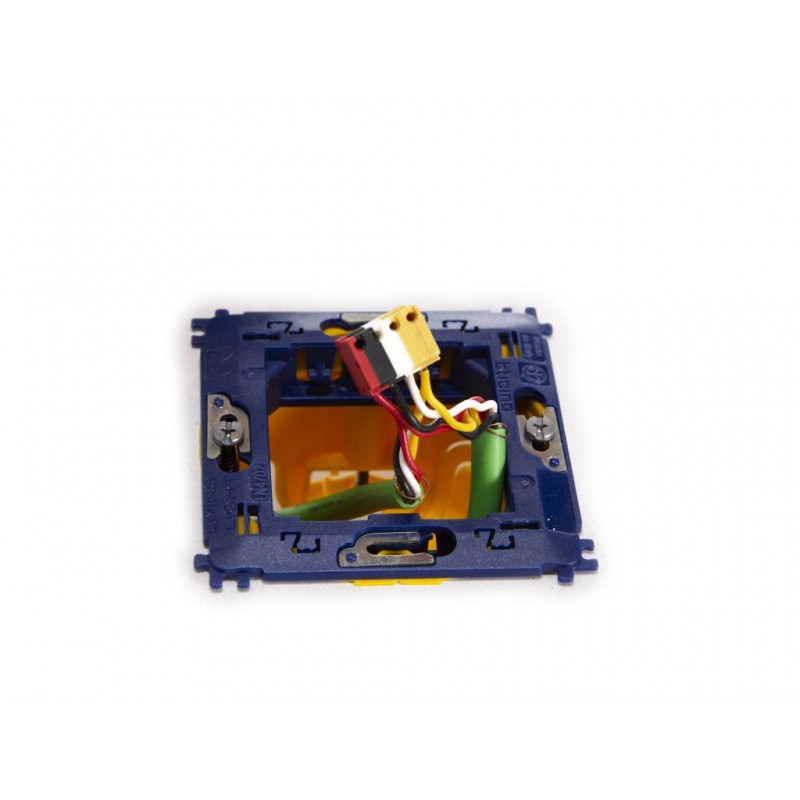

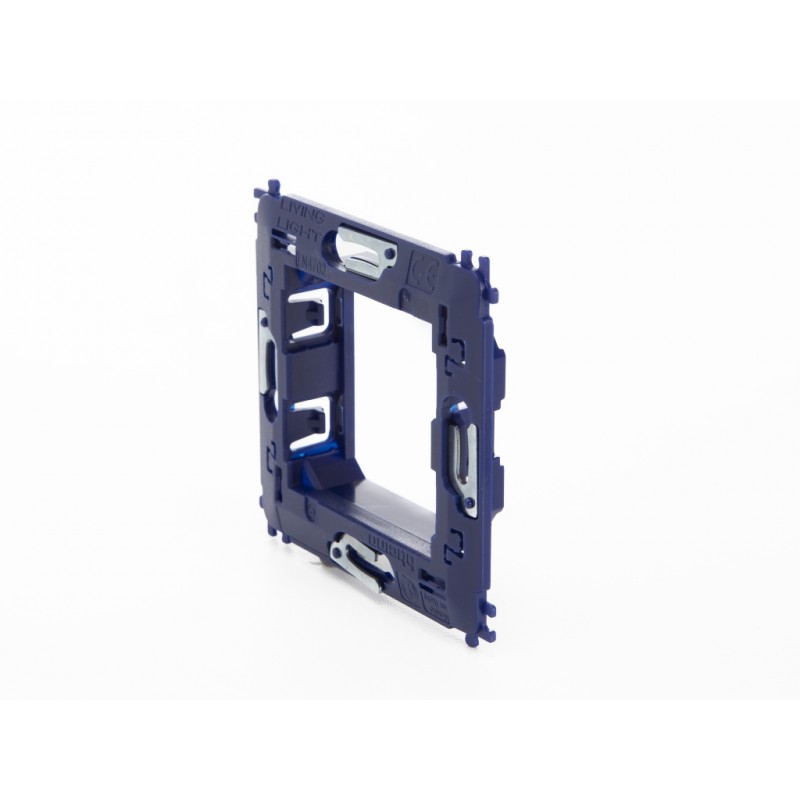

- compatible with Bticino fixing LN4702 (included)
Specifications
- Physical properties:
- Display: No
- Adjustable time-out: No
- Motion sensor: No
- Temperature sensor: Yes
- Thickness glass: 4 mm
- Twilight sensor: No
- Adjustable light intensity: No
- Distance glass panel to wall: 7 mm
- Glass edition: Frosted
- Installation depth: 28 mm
- Electrical data:
- Current consumption: 18 mA
- Standby current consumption: 10 mA
- Technical data:
- Number of channels: 8
- Number of buttons: 32
- Colour of LEDs: White
- Mounting type: Built-in, Clamp mounting, Screw mounting, Wall mount
- Protocol: Velbus CANbus
- Set-up options:
- Timer range: 1 day, 1 week, 1 year
- Environmental data:
- IP rating: IP20
- Operating temperature range: -10-40 °C
- Usage location: Indoor only
- Operational properties:
- Instruction manual languages: Dutch, English, French
- Astronomical clock: Yes
- Maximum program steps: 162
- Possible address: 250
- Reaction time: 0 s, 1 s, 2 s, 3 s
- Number of push buttons: 4
- Touch technology: SMSC Righttouch®
- IT connections:
- Connection type: WAGO KNX/EIB connector
- Power supply:
- Input voltage rating VDC range: 12-18 V
- Included:
- LED indicator: Yes
- Mounting frame included: Yes
- Product basic info:
- Colour unit: White
- Width unit: 86 mm
- Weight unit: 125 g
- Height unit: 86 mm
- Depth unit: 11 mm
- Additional material: Galvanized steel, PC (polycarbonate)
- Material: Glass
Only a qualified professional may carry out the installation in conformity with in force legislation and standards.
Bar code
- Bar code (EAN-13):5410329756314
Extra information
- Country of origin :BE
