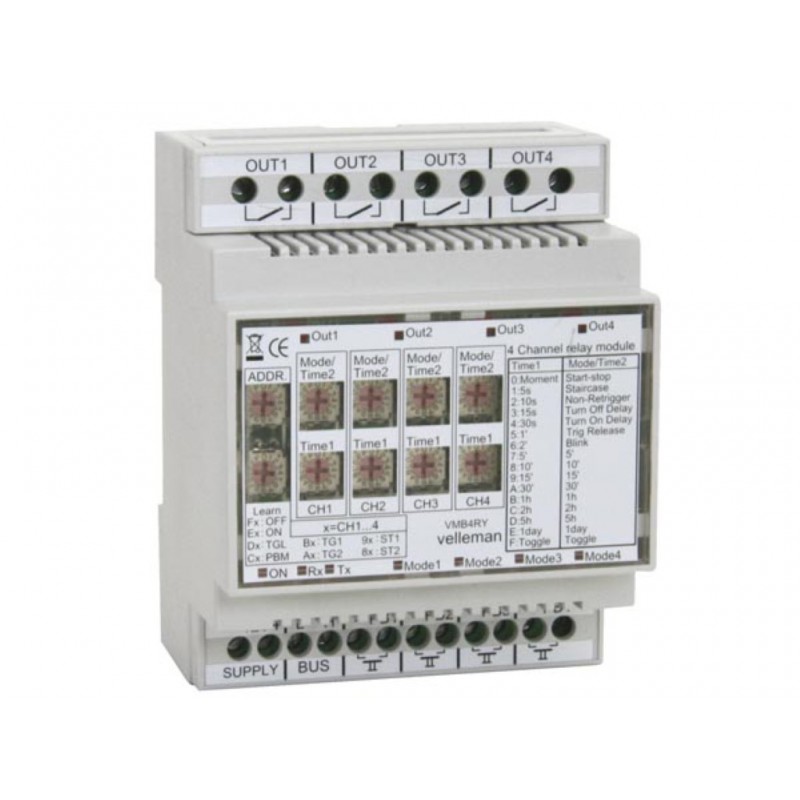

Velbus 4-channel relay module din rail

VMB4RY

Velbus VMB4RY 4-channel relay module with 9 modes. The light in the living room, the fountain in the garden, mains outlets in the children's rooms, the electrical car port… these are only some of the things you can control. Switching everything on or off is another option.

More details

215,60 €

-2%

220,00 €

More info

Configuration: manual or via PC

  • suppressed relay contacts
  • manual control on the module
  • control through VELBUS
  • controllable by connecting several push buttons in parallel
  • easy learning process
  • programmable without PC
  • storage space for 15 different push buttons per control group per channel
  • learned push buttons are saved in case of a power failure
  • report to control modules
  • 16 time settings: moment - 5s - 10s - 15s - 30s - 1min - 2 min - 5min - 10min - 15min - 30min - 1h - 2h - 5h - 1day - on/off
  • 9 different time settings for timer 2: 5min - 10min - 15min - 30min - 1h - 2h - 5h - 1day - on/off
  • LED indications for:
    • relay outputs
    • operation modes
    • power voltage
    • data reception and forwarding through VELBUS
  • 10 different operation modes :
    • moment control
    • on/off control
    • start/stop timer
    • staircase lighting timer
    • non-restartable timer
    • switch-off delay
    • switch-on delay
    • starting the timer by push button release
    • timer with blinking effect
    • 2-way timer
  • 8 different operation possibilities:
    • using push buttons turning on the relay
    • using push buttons turning off the relay
    • using push buttons turning the relay on or off
    • using push buttons activating the set operation mode
    • using push buttons starting or stopping the timer
    • using push buttons starting or stopping the 2nd timer in the 2-way timer mode
    • using push buttons restarting or stopping the timer
    • using push buttons starting or restarting the 2nd timer in the 2-way timer mode (except with on/off mode).

Specifications

  • power supply: 12VDC...18VDC
  • consumption all relays activated: 330mA/18VDC
  • consumption in standby: 50mA/16VDC
  • 4 independent relay outputs :
    • switching capacity with a resistive load: 16A/230VAC max
    • switching capacity with an inductive load: 8A/230VAC max.
  • 223 different addresses
  • push button input debounce: 65ms
  • standard DIN-rail housing : 4 modules
  • dimensions: 90 x 71 x 58mm / 3.5 x 2.8 x 2.3"
  • weight: 210g (0.46lbs)
  • width: 4 DIN modules

  • Bar code (EAN-13):5410329347376
